PVC Insulated AWA Armoured Control Cable 3 Core Electrical Cable Low Voltage

Brand Name : Zhongdong

Certification : ISO9001, CE, CCC, RoHS, VDE, cUL, CSA

Place of Origin : Hebei，China

MOQ : To be negotiated

Price : To be negotiated

Payment Terms : ,L/C,T/T

Supply Ability : 100KM/Week

Delivery Time : 7-30 days based on different qty

Packaging Details : Rolls, Wooden Drums, Steel Drums, Reels or customized

Usage : Access Control System

Insulation : XLPE PE PVC

Voltage : 300/500V ,450/750V

Length : Customized

Conductor Material : Copper

Packing : Neutral Carton Packing or Customized

Contact Now

PVC Insulated AWA Armoured Electrical Cable Three Core Control Cable





Application

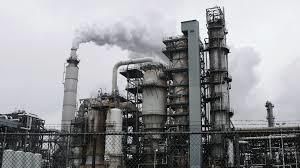

PVC-armored control cables are commonly used in environments requiring mechanical protection and resistance to harsh conditions, such as Factories, plants, and automation systems where cables are exposed to abrasion, impacts, or vibrations,Chemical plants, oil refineries, and mining sites needing corrosion and moisture resistance.



PVC Insulated AWA Armoured Control Cable 3 Core Electrical Cable Low VoltagePVC Insulated AWA Armoured Control Cable 3 Core Electrical Cable Low VoltagePVC Insulated AWA Armoured Control Cable 3 Core Electrical Cable Low Voltage



Construction



  1. Conductor: Circular, solid, compacted or sector shaped stranded Coppe
  2. Insulation:PVC
  3. Filler:Non-hygroscopic material
  4. Binder tape: Non-hygroscopic material
  5. Amour: steel tape
  6. Sheath: PVC











Description



  1. Rated voltage 450/750V or less,The control cable can be made as flame retardant when customer required.
  2. Laying Temperature:during laying environment temperature shall not be less than 0℃,the cable should be preheated.
  3. Operating Temperature:max permissible continuous operating temperature of conductor shall not exceed 70℃.
  4. Bending Radius:16D for armored cable





Product range





Nominal cross section

Nominal   insulation thickness

Nominal sheath thickness

Average outside diameter

 Max. DC resistance of conductor at 20 ℃

Approx. weight of cable

mm2

mm

mm

mm

Ω/km

kg/km







Limit

Caps





3×0.75

0.6

1.2

7.1

8.5

24.5

78.3

3×1.0

0.6

1.2

7.4

8.9

18.1

88.5

3×1.5

0.7

1.2

8.3

10

12.1

113.7

3×2.5

0.8

1.2

9.5

11.5

7.41

156.9

3×4

0.8

1.2

10.5

12.7

4.61

208.5

3×6

0.8

1.5

11.5

13.9

3.08

300.4

3×10

1

1.7

15.2

18.4

1.83

487.4

4×0.75

0.6

1.2

7.6

9.2

24.5

93.2
